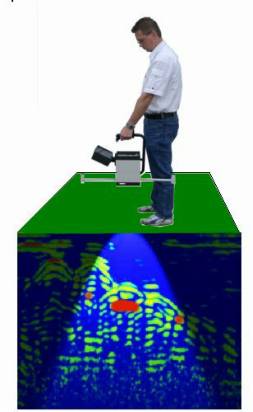

Localizer 3000 is a ground penetrating instrument you can use if you're looking for burried metal objects such as pipes, boxes, weapons and juwelery. Also you can detect cavity such as caves, rooms and graves. In it's basic version you can scan into depths upto 10m. With the optional differential probes you can scan upto 15m. If you use Localizer 3000 to scan an area you immediately see a picture of the ground in the monitor. All necessary data will be calculated in the internal 300 MHz Intel®-compatible processor. If you use the optional 3D imaging software you also can determine the depth of objects. There are some other optional components you can use with Localizer 3000. Further informations you find on user manual.

3D Imaging Software + Data Cable
All scans you made with Localizer 3000 will be saved into the internal memory of the device. If you use the optional software you can download all data files to your computer or laptop. Then you can determine the size and depth of your targets.

Differential Probes
To improve the measurement process you can use the differential probes. The device itself determines weather you have plugged in the optional probes. And if so they will be used for scanning. You will get a higher resolution of the underground by using this differential probes.

DDV - Disc Detector Visualization System
You can use a special metal detector with Localizer 3000. With it you're allowed to distinguish between different kinds of metal such as gold, silver or iron. Also you see it in a visual way in the monitor of Localizer 3000.

Technical Specification:
- 300 MHz CPU
- 32 MB data memory
- 6,4" color display
- 9,35 GHz scan frequency
- Maximum deep: 15m


Tested and certified by one of the leading technical experts in Germany
Compliance with the CE policies
Data transmission via USB
 Depth measurement up to 15 m depends on object size and ground conditions.
