Grailfinder is based on an electromagnetic pulse method which can be used to select anomalies in
the target area. Thus the device is able to detect natural features such as formations of strata,
cavities, groundwater level as well as sepulchers or buried objects such as pipes, tanks,
boxes or suchlike.
Grailfinder contains not only a magnetometer which can penetrate into a depth of 2m it also
owns an integrated scan function with what objects can be detected in a depth of 18m. Further
it owns an integrated geo-electric with what cavities can be detected up to 40m of depth.
Because of the integrated microprocessor technology ground balance, measuring of depth and
data storage will be performed automatically by the device. The evaluation take place at the

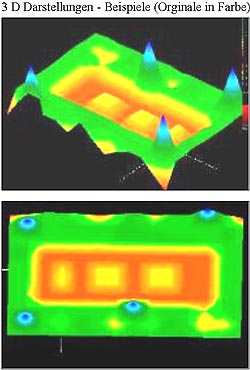

computer where the scanned area can be analyzed in a three-dimensional graphic.
Technical Specification:
- 12V power supply
- 9,35 GHz scan frequency
- Dimensions: approx. 170 x 200 x 65mm
- Weight: approx. 1400g
- Geo-electric: maximum deep 40m
- Scan sensors: maximum deep 18m
Scope of delivery: Grailfinder
- 1 3D software ( standard )
- 2 Carrying case
- 1 Control chip
- 1 Control unit
- 4 Electrode with cable ( 20m )
- 1 External power supply with charger and cable ( 12V )
- 1 Headphones
- 1 Joystick
- 1 Probe
- 1 USB bluetooth dongle + setup CD
- 1 User manual
- 1 3D software ( "Visualizer 3D" ) - optional
- 1 Super sensor - optional
