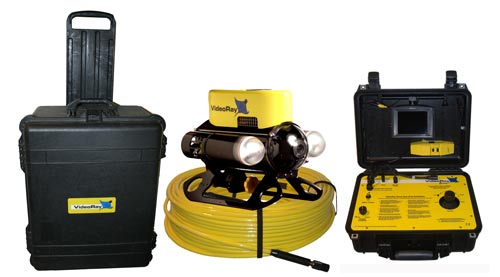

The Diving Robot includes the 8-pound submersible, control box, 40 m (131 ft) of neutrally buoyant
tether, manual, and tool kit. All components fit neatly in a watertight, rolling Pelican case that
fits easily in the trunk of a car or in airline luggage compartments. The entire system is stored
in the Pelican case and weighs 32 kg (70 lbs).
The Diving Robot is depth rated to 91 m (300 ft). Among the Robot's features are a new skid and
nozzles developed by NASA, a boost in thrust by nearly 80 percent over previous models, and a
three-axis joystick. Also includes are video eyeglasses.
The Diving Robot includes a color camera and a 5 inch LCD color display monitor. An external video
monitoring/recording device that has a composite video input– typically a TV/VCR combination – is
recommended for recording missions. The Tether Deployment System (TDS) is an excellent option for
quick coiling and recoiling of the tether.
Scope of delivery: Dive Robot
- Fits in two included Pelican cases, easily transported by one person and checked as airline baggage
- Total System Weight less than 32 kg (70 lbs)
- Depth rated to 91 m (300 ft)
- 40 m (131 ft) of Neutrally Buoyant Tether
- Joystick controls horizontal movement plus lights, allowing one hand control
- Depth rate of increase/decrease controllable from surface
- Two 20 Watt High Efficiency Halogen lights, controlled from surface
- Color camera with 420 lines of resolution and 0.3 lux
- 5 inch LCD color display monitor
- Composite Video Out works with wide variety of video display and recording devices (not included)
- Owners Manual, Spare Parts, and Basic Tool Kit included
- Submersible Power Consumption less than 300 Watts of 100-240VAC, 50-60Hz Power
- Maximum voltage in tether is 48VDC
- Extension Tether [Optional] Adds 250 feet of tether - 1.900,00 €
- Tether Deployment System [Optional] Includes self contained reel for easy tether management - 2.780,00 €
- Field Service Spares Package [Optional] Includes two Main Domes, three Seal Cartridges, one Prop Set, two Thruster Guards, one Float Block, one O-ring Set (entire vehicle), one weight set, four 12V bulbs, one skid assembly, one O-ring & gasket speed lubricator 1.475,00 EUR
