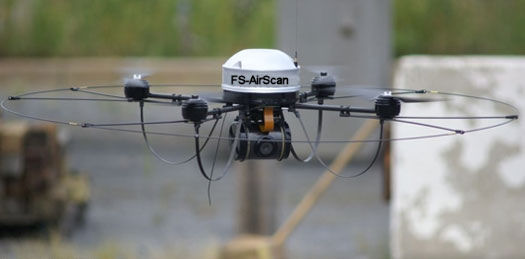

FS-AirScan Technical Data
weight < 1 kg

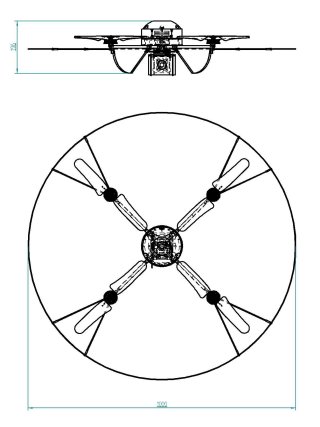

size Ø 1 m
flight duration > 20 Minuten
payload 200g
distance 500m
wind load bis 4 m/s
- 4 brushless and gearless electric drives (2000 rpm for silent operation)
- barometric altitude control
- protection ring and landing gear
- LiPo-battery
- gyroscopic and acceleration sensors
- autonomous landing if radio communication is missing
- 1.4 - 2.5 GHz link with 4-fold diversity receiver for video transmission
- software for documentation of missions
unsing the TFT touch screen of the Tablet-PC (picture taking
and video recording during the flight)
- base station with audio channel to document missions using a headset
- residual energy indication via downlink
- flight control by unsing TFT Tablet-PC or
video eyeglasses
Tested and certified by one of the
leading technical experts in Germany
Compliance with the CE policies
Data transmission via Bluetooth
Depth measurement up to 45 m depends on object size and ground conditions.
